<span style="font-size: 12pt;">XY axis manual stage</span> <br /><span style="font-size: 12pt;">Dual axis-XY axis</span> <br /><span style="font-size: 12pt;">Table size : 30 (mm) <br /><span style="font-size: 12pt;">Travel stroke : ±3.2 (mm)</span> <br /><span style="font-size: 12pt;">Feed position-Central feeding</span> <br /><span style="font-size: 12pt;">★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.</span> <br /><span style="font-size: 12pt;">★ Transmission Parts-Feeding screw It is suitable for simple precise moving.</span> <br /><span style="font-size: 12pt;">★ Material- Aluminum alloy</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong>This product pic. shows as MY25-AS-18.</strong></span></span></p>">

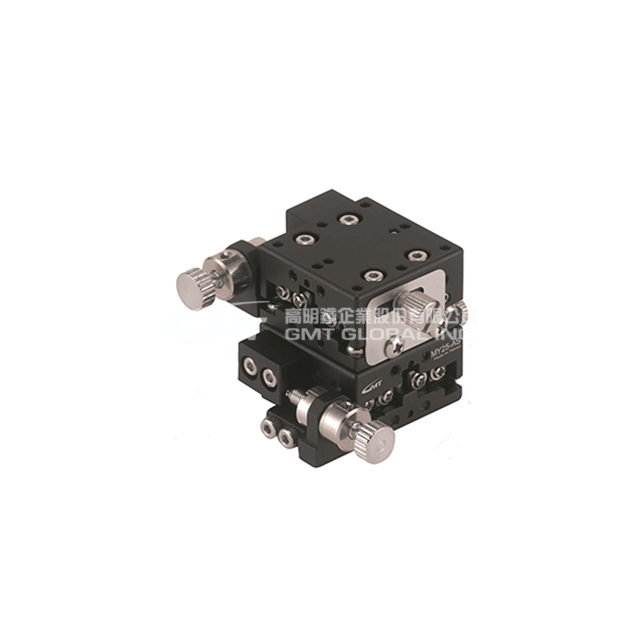

★This product pic. shows as MY25-AS-18.
Update:2022.4.19
Model No. | MY30-AS-18 | |
Specification | Table Size (mm) | 30 X 30 |
Axis | XY-Axis | |
Feed Position | Side | |
Travel Stroke (mm) | ± 3.2 | |
Movement Per Knob Rotation (mm) | 0.5 | |
Straightness Accuracy (μm) | 3 | |
Allowable Loading (Kgf) | 1 | |
Weight (Kg) | 0.09 | |
Material | Aluminum Alloy | |
Surface Finish | Black Anodized |
Feed Position |
Characterisitc of Different Guiding Type |
The Main Feeding Mode of Mini Stages |
