    MY50-AC-18


    XY axis manual stage
    Dual axis-XY axis
    Table size : 50 (mm)
    Travel stroke : ±6.5 (mm)
    Feed position-Central feeding
    ★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
    ★ Transmission Parts-Feeding screw It is suitable for simple precise moving.
    ★ Material- Aluminum alloy

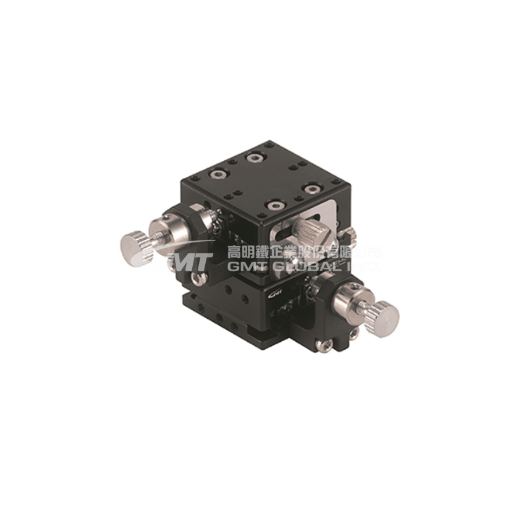

    This product pic. shows as MY25-AC-18.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.19

    Model No.

    MY50-AC-18

    Specification

    Table Size (mm)

    50 X 50

    Axis

    XY-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 6.5

    Movement Per Knob Rotation (mm)

    0.5

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    4

    Weight (Kg)

    0.44

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
