MY50-SC

XY axis manual stage
Dual axes-XY axis
Table size : 50 (mm)
Travel stroke : ±6.5 (mm)
Feed position-Central feeding
★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Stainless steel

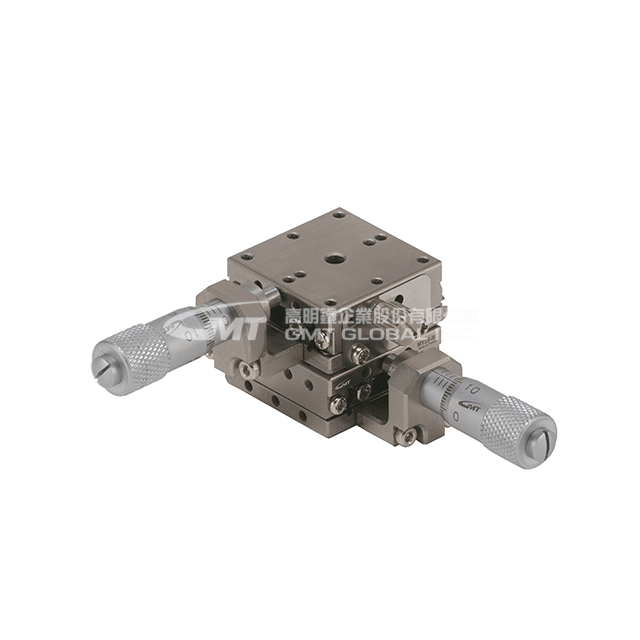

★This product pic. shows as MY25-SC.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.19

Model No.		MY50-SC
Specification	Table Size (mm)	50 X 50
	Axis	XY-Axis
	Feed Position	Central
	Travel Stroke (mm)	± 6.5
	Micrometer Min. Reading (μm)	10
	Straightness Accuracy (μm)	3
	Allowable Loading (Kgf)	14.7
	Weight (Kg)	0.56
	Material	SUS 440C
	Surface Finish	Electroless Nickel Plating

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
