    MY80-FS


    XY axis manual stage
    Dual axes-XY axis
    Table size : 80 (mm)
    Travel stroke : ±12.5 (mm)
    Feed position-Side feeding
    ★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Carbon Steel

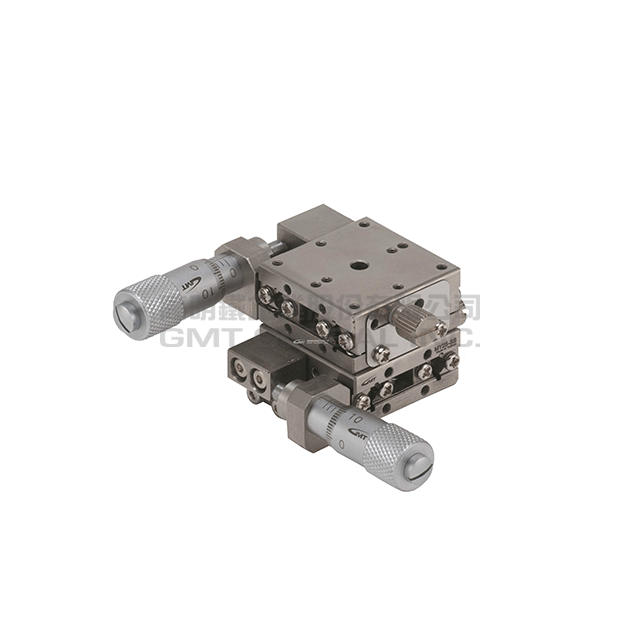

    This product pic. shows as MY25-SS which is only for reference, please base on below specification for further information.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.12.15

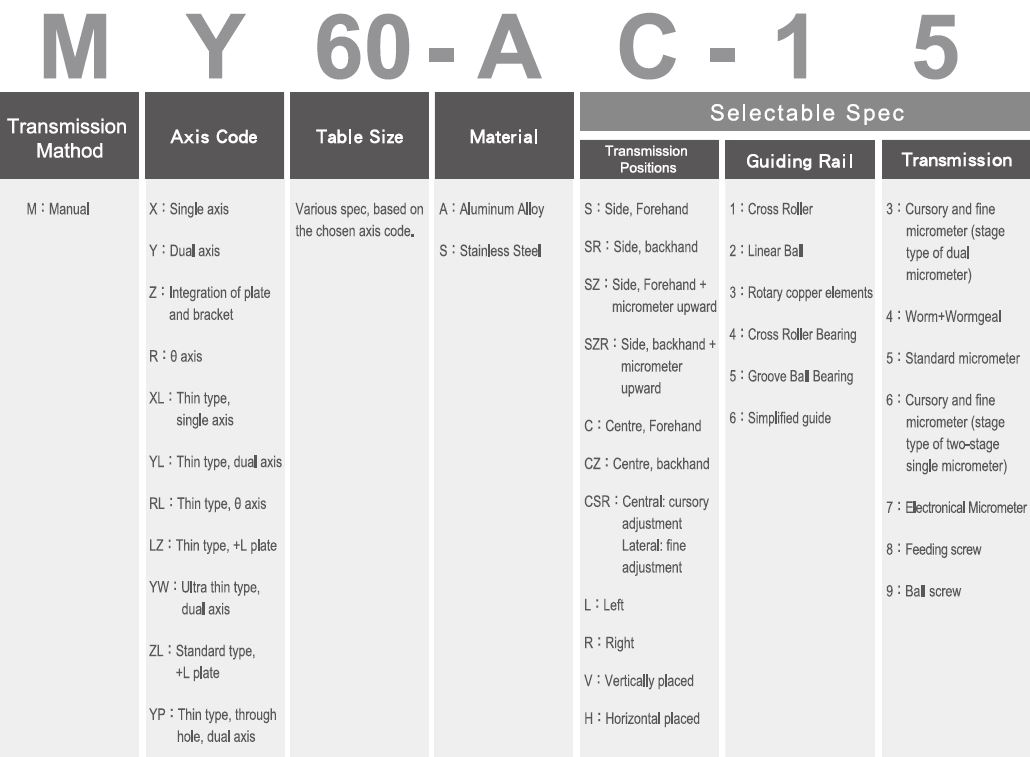

    Model No.

    MY80-FS

    Specification

    Table Size (mm)

    80 X 80

    Axis

    XY-Axis

    Feed Position

    Side

    Travel Stroke (mm)

    ± 12.5

    Micrometer Min. Reading (μm)

    10

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    26.1

    Weight (Kg)

    1.8

    Material

    Carbon Steel

    Surface Finish

    Electroless Nickel Plating

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
