    MYL30-AS


    XY axis manual stage-Thin type
    Dual axis XY axis
    Table size : 30 (mm)
    Travel stroke : ±3.2(mm)
    Feed position-Slide feeding
    ★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Aluminum alloy

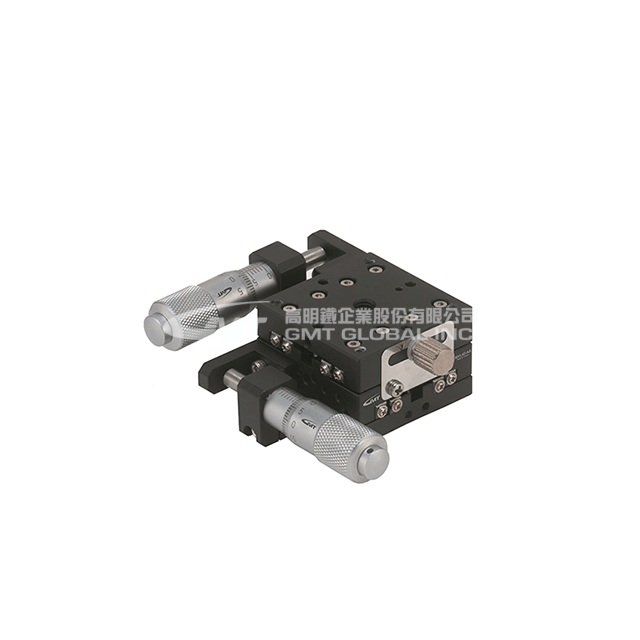

    This product pic. shows as MYL40-AS.

    SKU: MYL30-AS
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.15

    Model No.

    MYL30-AS

    Specification

    Table Size (mm)

    30 X 30

    Axis

    XY-Axis

    Feed Position

    Side

    Travel Stroke (mm)

    ± 3.2

    Micrometer Min. Reading (μm)

    10

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    3

    Weight (Kg)

    0.08

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
