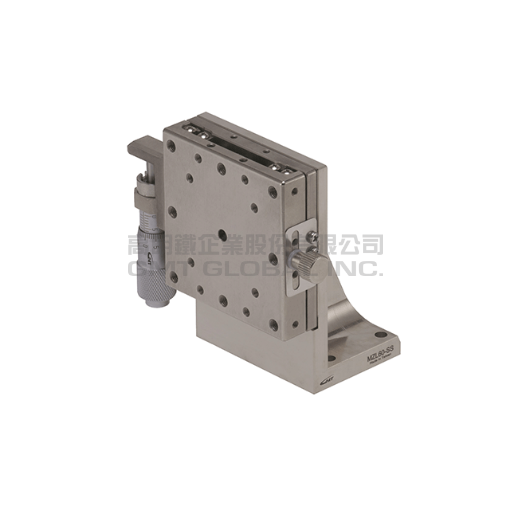

MZL60-FS

Z axis manual stage
Single axis-Z axis-(X axis + L bracket)
Table size : 60 (mm)
Travel stroke : ±6.5 (mm)
Feed position-Side feeding
★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Carbon Steel

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D DOWNLOADS
Contact Us

Update：2022.12.15

Model No.		MZL60-FS
Specification	Table Size (mm)	60 X 60
	Travel Stroke (mm)	± 6.5
	Micrometer Min. Reading (μm)	10
	Straightness Accuracy (μm)	3
	Pitching Accuracy	25"
	Yawing Accuracy	15"
	Allowable Loading (Kgf)	5
	Weight (Kg)	0.58
	Material	Carbon Steel
	Surface Finish	Electroless Nickel Plating

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

MZL60-FS

MZL60-SS
