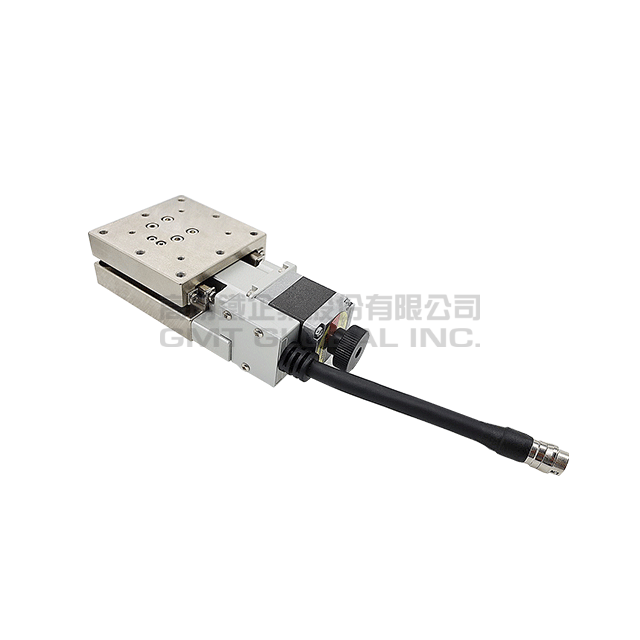

    CXS60 - Ultra Precision


    ★ Guide-Linear ball, Gothic arc-groove formed by dual arc-grooves individually on upper and lower rails of body. Ball moving in single groove is structured by 2 points-contact, and total 4contact points in dual arc-groove to form strong rail constructure.
    ★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
    ★ Material-Stainless Steel
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.3.24

    Model No.

    CXS60

    Mechanical Spec.

    Table Size (mm)

    60X60

    Travel Stroke (mm)

    20、30、50

    Drive Type

    Ball Screw Ø8,lead 1mm

    Rail

    Linear Ball Guiding

    Stage Material / Surface Treatment

    Stainless Steel / Nickel plating

    Accuracy Level

    OP:Ultra Precision

    Wiring Method

    N:GMT Standard

    Precision Spec.

    Resolution(Pulse) (µm)

    M: 1 (Full);0.5 (Half)

    J: 2 (Full);1  (Half)

    Max. Speed(Full Step) (mm/sec)

    15

    Positioning Precision (µm)

    5

    Repeatability Precision(µm)

    ±0.5

    Multi-point Repeatability Precision(µm)

    A: 1.5 / B: 1

    Load Capacity (Kgf)

    7

    Missed Step (µm)

    1

    Moment Stiffness

    Pitch: 0.085 / Yaw: 0.065 / Rolling: 0.065 ("/N-cm)

    Pitch / Yaw

    Pitch: < 20" / Yaw: < 15"

    Parallelism (µm)

    20

    Dynamic Straightness (µm)

    2

    Dynamic Parallelism (µm)

    10



    Electrical Spec.

    Motor

    Type / Shaft Numbers

    M: 5-phase stepper high-resolution motor / ☐28 double shafts

    J: 5-phase stepper motor / ☐28 double shafts

    Brand / Model

    M: Orientalmotor / PK523HPMB

    J: Orientalmotor / PKP523N12B

    Driver Brand / Model

    Orientalmotor / CVD Series - 5 Phase stepping motor (Additional options)

    Connector

    Stage Side Connector

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    Controller Side Connector

    15-Pin female end connetor D-SUB (Additional options) / 12-Pin female end connetor HRS (Additional options)

    Sensor

    Origin Sensor

    Photoelectric sensor GMT-sensor

    Limit Sensor

    Origin Approximation Sensor

    N / A

    Power Voltage

    24V±10%

    Control Output

    NPN open collector output under 24V 8mA

    Output Control

    Testing (sensing):output transistor OFF (closed)

    Multi-point repeated positioning accuracy

    ♦   Accuracy measurement description

    1. Unidirectional positioning accuracy: within the range of the predetermined detection stroke, starting from a starting position, moving and positioning in a certain direction sequentially, and detecting the actual
    The difference between the movement value and the target movement value, and the maximum error value is taken. This value is the unidirectional positioning accuracy.
    2. Multi-point repeated positioning accuracy: within the range of the predetermined detection stroke, when the mechanical program is executed, the position accuracy obtained by repeatedly running the same program code
    degree. Calculate the position deviation that occurs when the same position is repeated back and forth, and obtain the deviation value between the two.

    ♦   Precision introduction

    1. Design the GMT high-level precision inspection method to meet the precision requirements of fiber coupling and semiconductor manufacturing process.
    2. The detection of GMT high-end precision linear slide module series adopts multi-point repeated measurement, that is, multi-point quantity measurement within a fixed stroke range (points
    The amount is increased or decreased according to the length of the stroke), and the actual change of the round-trip position error is recorded, in pursuit of high precision and repeatability.
    3. Through the non-contact laser interferometer measurement, to ensure that the unidirectional positioning is within 10μm, and the multipoint repetitive positioning accuracy is within 1.5μm. If there is a need for higher precision and precision, please contact the regional sales/business team.



    System Configuration Diagram

    ♦   For detailed specifications, please read the description for the stage and connecting cable.

    ♦   For selection of driver, please refer to the cross-reference table for the motor/driver of the standard motorized stage or the GMT motor and driver catalog.

    ♦   The most preferred driver is recommended to be specified by GMT as considerations. For different needs, please choose the suitable driver based on real functional needs.



    Axis Definition

    GMT has defined different axis as the following figuration according to the movement direction:

    Horizontal movement direction is X and Y axis.

    Vertical movement direction is Z axis.

    Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.

    Green arrows present the specified axis movement direction.
